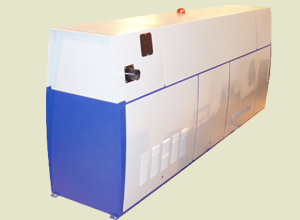

SINGLE MODE TUBE CO2-LASER TLV-700, TLV-1000, TLV-1500


Одномодовый волноводный технологический лазер ТЛ700

Application:
  • Cutting and programmed contour outcutting of metal and non-metal materials;
  • sheet perforation;
  • deep hole drilling;
  • scribing;
  • marking;
  Features:
  • pulse-periodic mode operation
  • High beam quality
  • Low consumption of gases, water, electric energy
Technical data


Beam wavelength mm 10.6
Rated output power W 700; 1000; 1500
Output power range W 70...750; 100...1000; 100...1500
Beam diameter mm 5
Polarization   linear
Beam structure   TEM00
Pulse rate Hz 0...2000
Pulse width ms 250...CW
maximum peak power W 1500; 2000; 3000
Input power kW 10
Weight kg 150
By consumer required
Circularly polarization by means of an external accessory available from TechnoLaser
Closed cycle thermal control system for cooling
